E.Z.N.A.® Mollusc & Insect DNA Kit

Price range: $0.00 through $585.90

Isolate DNA from molluscs and insects using spin columns.

  • Rapid – DNA isolation under 20 minutes following lysis
  • Reliable – Optimized buffer system guarantee pure DNA every time
  • High-quality – Purified DNA suitable for any application
  • Flexible – Optimized buffer system can isolate DNA from a wide range of samples
- +

The E.Z.N.A.® Mollusc & Insect DNA Kit is designed for the efficient recovery of genomic DNA from molluscs, insects, arthropods, roundworms, flatworms, and other invertebrate tissue samples rich in mucopolysaccharides. This kit can also be used with formalin preserved material or invertebrates frozen or preserved in alcohol or DNE solution.

The procedure relies on the well-established properties of the cationic detergent, cetyltrimethyl ammonium bromide (CTAB), in conjunction with the selective DNA binding technology of Omega Bio-tek’s HiBind® matrix. Samples are homogenized and lysed in a high salt buffer containing CTAB and extracted with chloroform to remove mucopolysaccharides. Following a rapid alcohol precipitation step, DNA is bound to the HiBind® DNA Mini Column upon adjustment of binding conditions and further purified through multiple wash steps. In this way, salts, proteins and other contaminants are removed to yield high-quality genomic DNA suitable for downstream applications such as endonuclease digestion, thermal cycle amplification, and hybridization techniques.

For Research Use Only. Not for use in diagnostic procedures.

FEATURESSPECIFICATIONS
Starting Amount50 mg
Starting MaterialMolluscs, insects, arthropods, roundworms, flatworms, and other invertebrate tissue samples rich in mucopolysaccharides
Yield100 µg
Elution Volume50-100 μL
TechnologyHiBind® DNA Mini Column
Processing ModeManual


Mollusc Samples Yield & Quality

Figure 1. Genomic DNA purified using the E.Z.N.A.® Mollusc & Insect DNA Kit. Purified genomic DNA from various mollusc tissue was isolated with the E.Z.N.A.® Mollusc & Insect DNA Kit. DNA was extracted from 30 mg mollusc tissue as follows: sample 1 from oyster sticking muscle, sample 2 from oyster muscle, sample 3 from mussel muscle, and sample 4 from river snail. Genomic DNA (10% of total purified DNA) was analyzed on a 1% agarose gel to demonstrate yield and quality of the DNA. M: CL5000 DNA Marker.

Mollusc Samples PCR Analysis

Figure 2. Amplification of genomic DNA isolated from 4 mollusc tissue samples using the E.Z.N.A.® Mollusc & Insect DNA Kit. DNA from mollusc tissue samples was isolated with the E.Z.N.A.® Mollusc & Insect DNA Kit as follows: sample 1 from oyster sticking muscle, sample 2 from oyster muscle, sample 3 from mussel muscle, and sample 4 from river snail. DNA was purified from 4 types of mollusc tissue samples. A total of 2 µL of each eluate was amplified with a PCR master mix and SSR primers to determine whether inhibitors were present in the eluted DNA. Each lane contains 20% PCR product separated on a 2% agarose gel. M: DL2000 DNA Marker. N: Negative control.

DNA Extraction from Beetle and Mollusc Samples

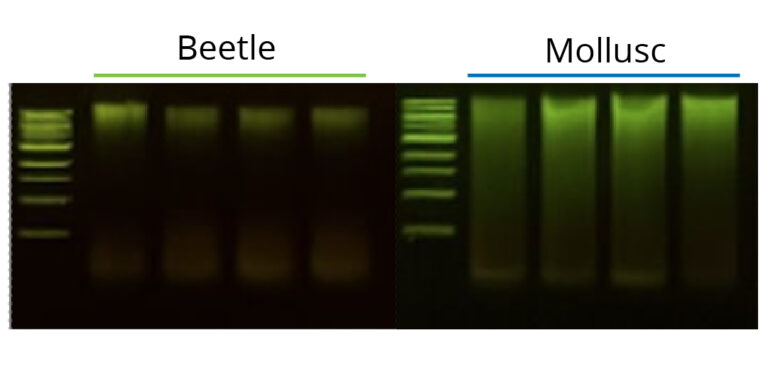

Figure 3. Genomic DNA was isolated from 30mg of Black Buffalo Beetle and Mollusc tissue using the E.Z.N.A.® Mollusc & Insect DNA Kit. DNA was visualized on a 1% agarose gel.

Unfragmented DNA Extracted from Cricket and Fruit Fly Samples

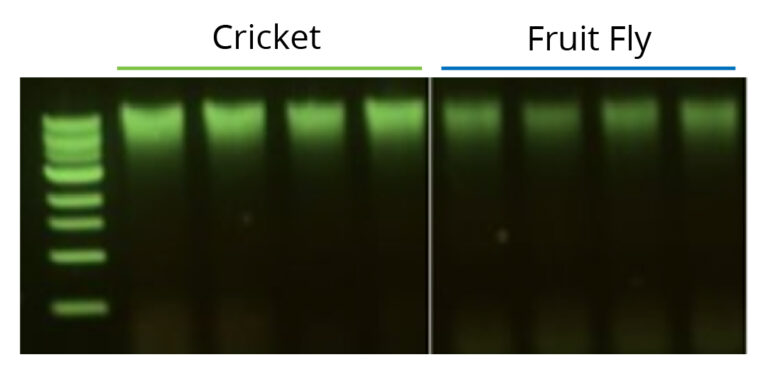

Figure 4. Genomic DNA was isolated from 30 mg of cricket and 20 mg of fruit fly (Drosophila melanogaster) tissue the E.Z.N.A.® Mollusc & Insect DNA Kit. DNA was visualized on a 1% agarose gel.

High Yields of High-Quality DNA Extracted from a Range of Insect and Mollusc Samples

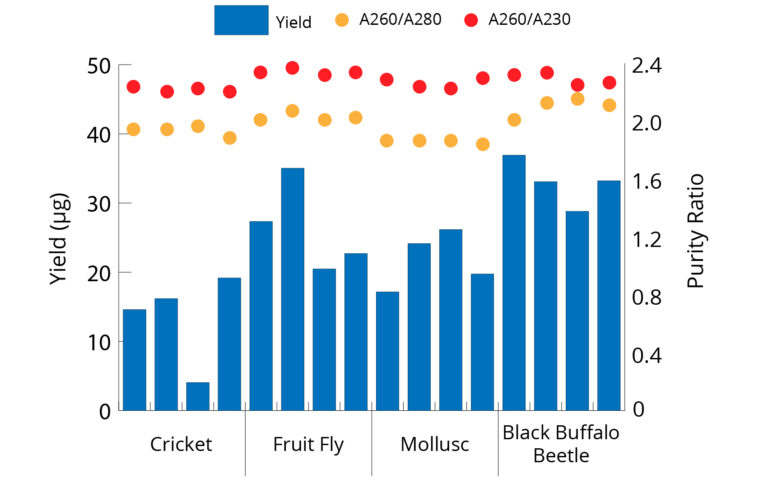

Figure 5. Genomic DNA was extracted from 30 mg of cricket, 20 mg of fruit fly (Drosophila melanogaster), 30 mg of mollusc, and 30 mg of Black Buffalo Beetle tissues using the E.Z.N.A.® Mollusc & Insect DNA Kit. Genomic DNA was eluted in 100 µL . DNA concentration was determined by optical density measurements using Thermo Scientific’s NanoDrop™ 2000c system.

Inhibitor-Free DNA Extraction from Fruit Fly Samples

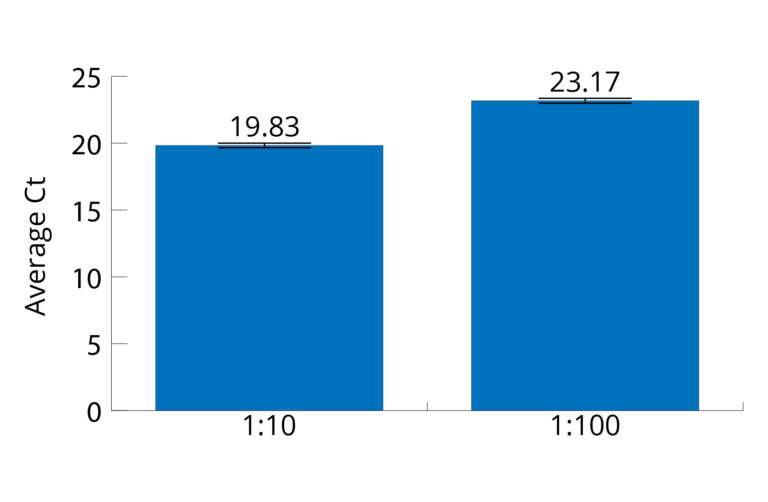

Figure 6. Genomic DNA was extracted from 20 mg of fruit fly (Drosophila melanogaster) tissue and was analyzed via qPCR on Applied Biosystems’ QuantStudio™ 3 Real-Time PCR System to evaluate its suitability for downstream processes. The ΔCt between dilutions was ~3.3, indicating minimal PCR inhibition.
